- Output Metal Density upto 2 Ton/m³
- ≥ 99% Metal Recovery in Process
- Z Box Cleaning System
- Non Ferrous Segregation and De-dusting System
- Lowest Operation Cost ~ INR 650 / t

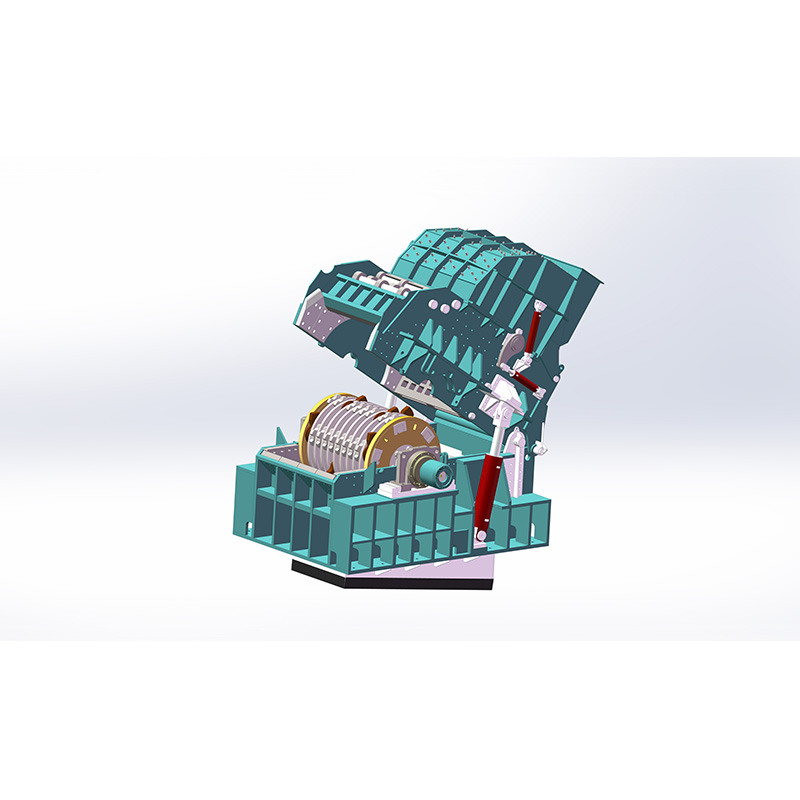

Hammer Mill Shredder
| MODEL (PSX) | 5060 | 6070 | 6080 | 80104 | 88104 | 98104 |
|---|---|---|---|---|---|---|
| MOTOR POWER in Kw (HP) | 450 (600) | 630(850) | 900(1200) | 1500(2000) | 3000(4000) | 4500(6000) |
| ROTATOR DIA. in mm | 1270 | 1550 | 1510 | 2020 | 2200 | 2480 |
| SHREDDER CAVITY WIDTH in mm 1 | 1614 | 1714 | 2150 | 2650 | 2650 | 2650 |
| CAPACITY in tons/hr | 5-8 | 12-15 | 20-25 | 30-40 | 50-70 | 80-120 |
| BASIC FOOTPRINT in m x m | 30 x 15 | 45 x 15 | 75 x 45 | 90 x 45 | 105 x 50 | 125 x 55 |
